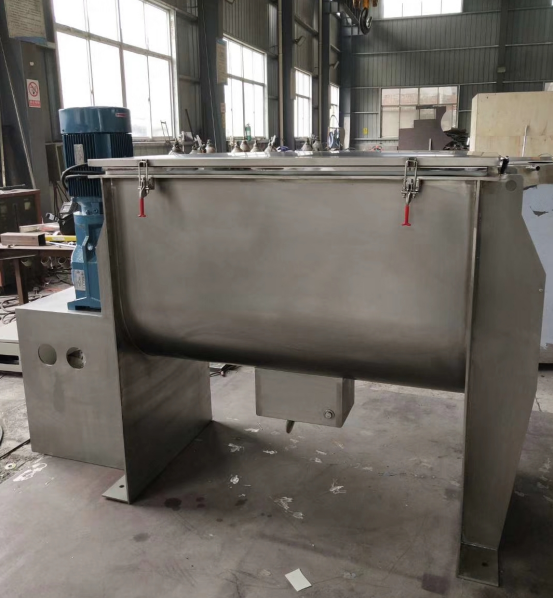

简介(Brief)：
l 主要用于制药、化工、食品等行业的混合。
Mainly applied by pharmacy, foodstuff and chemical industry.
l 适用于干颗粒、粉末和粘稠物料的混合，适合大中批量生产。
Suitable to blend dry granules, powders or pasty materials; suit to large or medium scale production.
l 不锈钢制作，二层螺旋桨叶连续旋转混合，外层螺旋将物料从两侧向中央汇集，内层螺旋将物料从中央向两侧分流，使物料在混合槽内形成对流混合，从而达到高均匀度混合效果。
The machine is made with stainless steel. Two strip screw type paddle rotate continuously to blend the materials. The external screw gathers the materials inwards while the internal screw disperses the materials outwards with convective mixing inside the cavity to realize high uniformity mixed materials.
l 本机根据要求可配有加热和喷雾功能。
Heating and spray system is configurable upon request.
l The machine is made with stainless steel. Two strip screw type paddle rotate continuously to blend the materials. The external screw gathers the materials inwards while the internal screw disperses the materials outwards with convective mixing inside the cavity to realize high uniformity mixed materials.
l 本机根据要求可配有加热和喷雾功能。
Heating and spray system is configurable upon request.

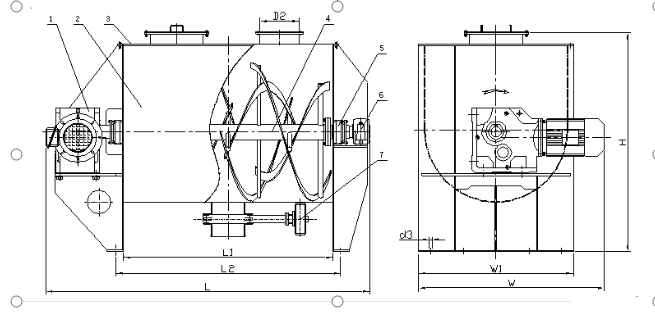

结构示意图（Schematic diagram）：
1. 减速机(Reducer) 2.壳体(Drum) 3.筒盖(Lid) 4.螺带(Ribbon Paddle) 5.轴端密封(Sealer)
6.轴承(Bearing) 7.出料阀(Discharge Port)
技术参数(Technical Specifications)：
|
规格（m3） Norm |
0.3 | 0.5 | 1 | 2 | 3 | 4 | 5 | 6 | 8 | 10 | 12 | 15 | |
|
装载系数 Loading coefficient |
0.4～0.6 | ||||||||||||
|
装机功率kw Installed power |
4 | 5.5 | 11 | 18.5 | 22 | 22 | 30 | 37 | 45 | 55 | 55 | 75 | |
|
主轴转速r/min Speed of Spindle |
66 | 66 | 41 | 41 | 33 | 33 | 26 | 26 | 26 | 20 | 20 | 17 | |
| 进料口尺寸(mm) Size of feeding port | D1 | 1-φ500 | 1-φ500 | 1-φ500 | 1-φ500 | 1-φ500 | 1-φ500 | 1-φ500 | 1-φ500 | 1-φ500 | 1-φ500 | 1-φ500 | 1-φ500 |
| D2 | 1-φ350 | 1-φ350 | 1-φ350 | 1-φ350 | 1-φ350 | 2-φ300 | 2-φ300 | 2-φ300 | 2-φ300 | 2-φ300 | |||
|
出料口尺寸(mm) Size of discharge port |
300×400 | 500×90 | 500×90 | 500×90 | 500×90 | 500×90 | 500×90 | 500×90 | 500×90 | 500×90 | 500×90 | 500×90 | |
|
外形尺寸(mm) Out-form Dimension |
L | 1550 | 1672 | 1970 | 2480 | 2880 | 3026 | 3518 | 3905 | 4398 | 4500 | 4486 | 5363 |
| W | 1005 | 1142 | 1437 | 1561 | 1895 | 1947 | 1945 | 1683 | 1960 | 2070 | 2250 | 2250 | |
| H | 935 | 1300 | 1500 | 1830 | 2080 | 2235 | 2230 | 2286 | 2316 | 2667 | 2737 | 3070 | |
| L1 | 980 | 1000 | 1230 | 1690 | 1910 | 2040 | 2418 | 2800 | 2800 | 3200 | 3200 | 4000 | |
| L2 | 1060 | 1200 | 1350 | 1840 | 2060 | 2280 | 2618 | 3000 | 3030 | 3430 | 3400 | 4230 | |
| W1 | 650 | 808 | 1010 | 1210 | 1412 | 1513 | 1636 | 1682 | 1960 | 2070 | 2266 | 2250 | |
| d3 | 6-φ18 | 6-φ26 | 6-φ26 | 6-φ26 | 6-φ26 | 6-φ26 | 6-φ26 | 6-φ26 | 6-φ26 | 8-φ26 | 12-φ22 | 8-φ26 | |
|
设备重量kg Weight |
780 | 955 | 1400 | 2500 | 3300 | 3600 | 4620 | 5300 | 6800 | 8900 | 9520 | 9950 | |
Parameters above are for standard machines. For non-standard ones please refer to the specific drawings.
